Overview
The entities used in Footprint need to be mapped to their equivalents in the Shipping Management module. The Measurement Units Mapping section is where this is done for your Measurement Units - the units of measurement by which you can measure dimensions or weight in Footprint.
From here you can...

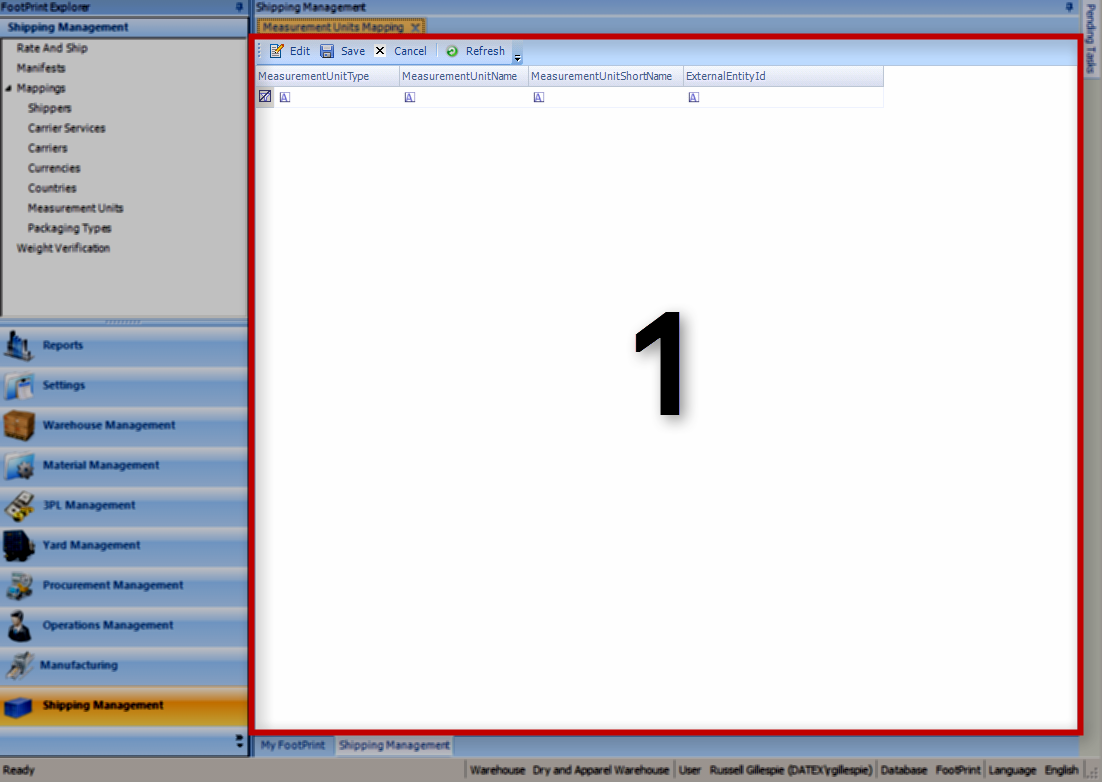

Main Screen Layout
The Measurement Units Mapping section only has one part - the Measurement Units List.
1. Measurement Units List
A list of all Measurement Units set up in Footprint.

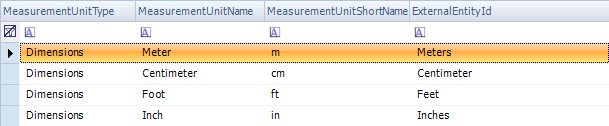

Measurement Units List
The Measurement Units List is pulled from the list of Units of Measurements, as configured in the Footprint Database.
The Edit button allows you to make changes to the Measurement Units, selecting the External Measurement Units to associate with the Unit of Measurement. Save will save any changes made here, and Cancel discards changes. Refresh will load the most current Measurement Units information.
Measurement Unit Type: What the unit of measurement is for (weight or dimensions).
Measurement Unit Name: The name of unit of measurement.
Measurement Unit Short Name: The short name for the unit of measurement.
External Entity ID: The only editable field, a drop-down list of all Measurement Units available.
